Map Remote

Use Proxyman Map Remote to redirect matching HTTP, HTTPS, and WebSocket requests to another host, port, or path, such as localhost or staging.

1. What's it?

Map Remote (⌥⌘R) changes the location of an HTTP request to a new destination server, based on your rules. Your client gets the response from the new server as if nothing changed.

Map Remote also supports mapping from HTTP to HTTPS and vice versa.

Map Remote rules

info

Check out common Map Remote Config when mapping from HTTP <-> HTTPS.

info

From Proxyman 4.3.0: Map Remote supports Websocket and Secure Websocket.

2. Benefits

• Use Production endpoints on your Development website for certain endpoints, without changing the source code
• Use Development endpoints on your Production website
• Send certain request URLs to different destinations
• Replace request components, such as Protocol, Host, Port, Path, or Query, on the fly

info

To boost your productivity, you can use the Scripting feature to get the same result as Map Remote by writing simple JavaScript code.

For instance, Snippet code to change Production to Localhost server

3. Map Remote with GraphQL Requests

From Proxyman 2.27.0+, Map Remote can work with GraphQL requests by a specific QueryName. Please check out the following GraphQL document.

GraphQLDebug GraphQL requests in Proxyman: match rules by query name, prettify queries, show a Query Name column, and mock responses with scripts.

4. Using Scripting as Map Remote ✅

If a Map Remote rule is hard to set up, you can do it more easily with the Scripting Tool.

Please check out Map Remote Snippet Code to learn how to use Scripting to achieve the same result as Map Remote.

For instance, it's easy to do the following with Scripting:

• Map v1 to v2 endpoints
• Map Production to Localhost
• Map Localhost to Production
• ...

5. Matching Rule

info

Proxyman supports Regular Expression and Wildcard from version 2.3.0. Check out how to use Wildcard and Regex.

We can define matching rules by using Wildcard or Regular Expression.

For matched requests, Proxyman attempts to:

• Replace the Protocol, Host, Port, Path, and Query, if they are set
• If a component is empty, it won't change that component of the matched request

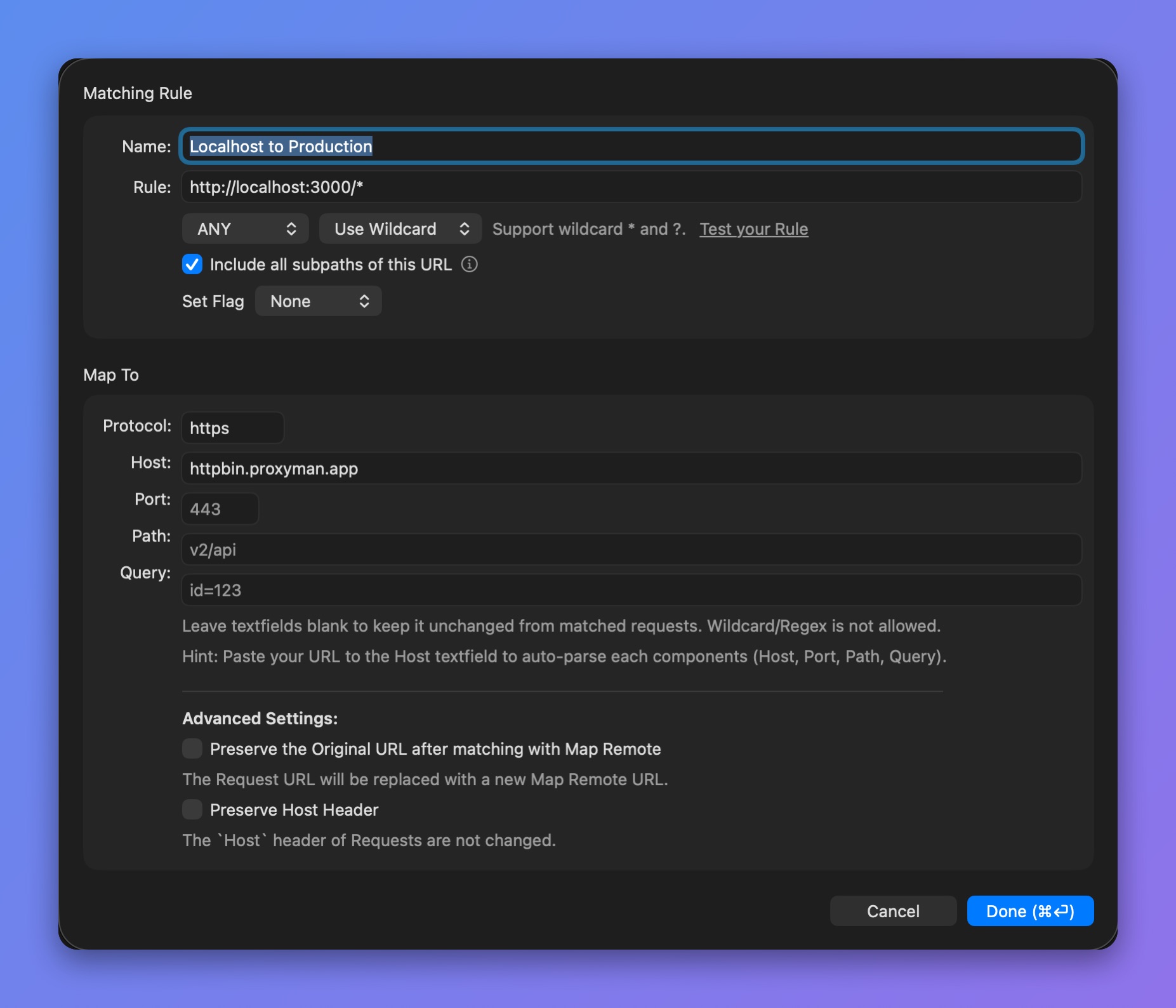

Map Remote rule editor

info

• Leave a text field blank to keep that part unchanged from the matched request
• Wildcards are not allowed in the Map To fields

Debugging

To find which Map Remote rule matches your URL, open the request's Summary tab:

1. Select your request
2. Summary tab -> Debugging Tools
3. Check the mapped URL

Preserve Host Header

By default, Proxyman overrides the Host header to match the new host in Map Remote. This is needed for most requests to succeed.

If you would like to keep the original Host header, check the "Preserve Host Header" checkbox when you create a new entry. Proxyman will keep the Host value.

6. How to use

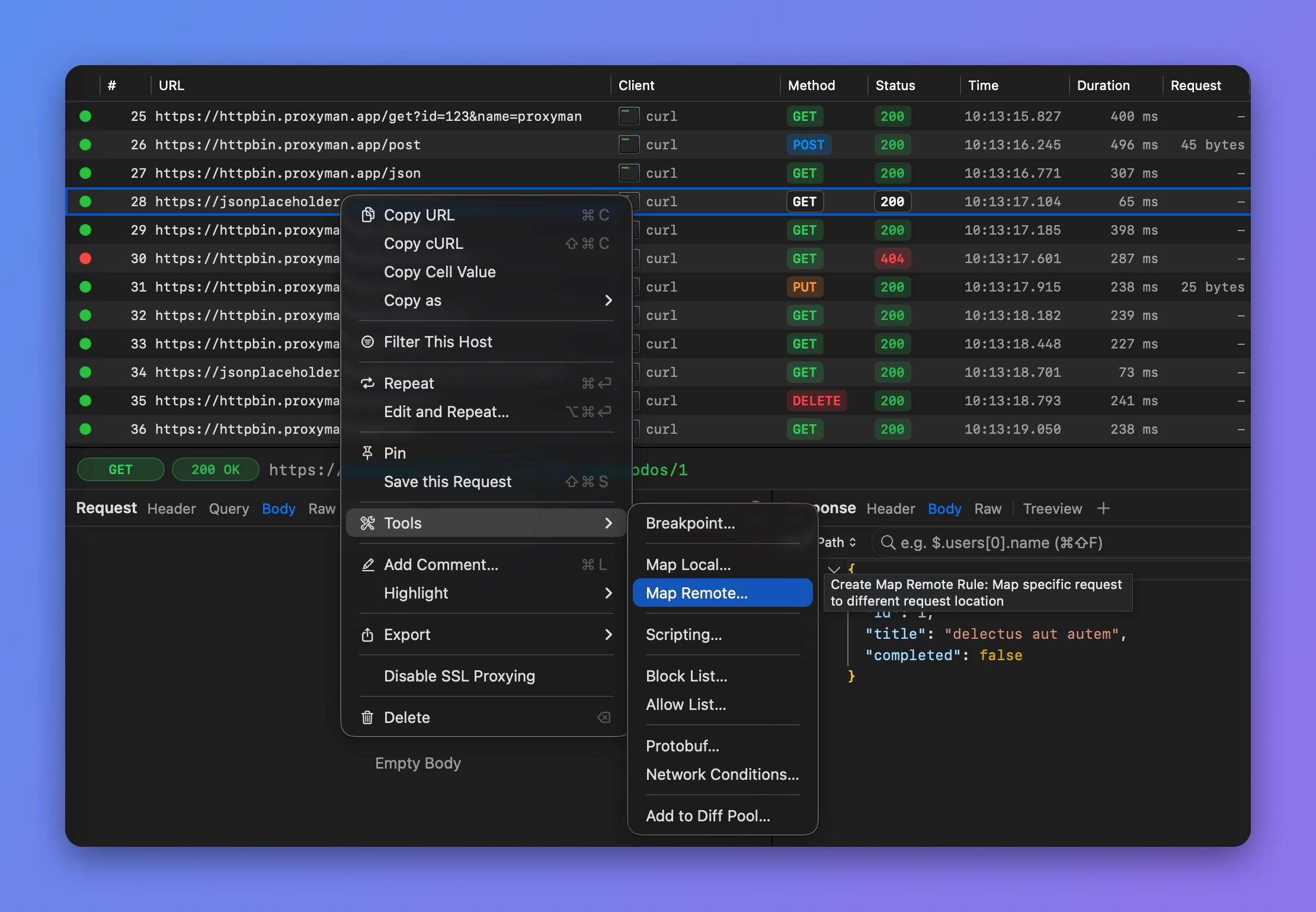

• Right-click on the selected request -> Tools -> Map Remote…. Proxyman fills in the needed data from the selected request.

Create a Map Remote rule from a request

7. Common Usages

7.1 Map Localhost (HTTP) to Production (HTTPS)

Result:

Original URL	To URL
http://localhost:3000	https://proxyman.io
http://localhost:3000/pricing	https://proxyman.io/pricing
http://localhost:3000/v1/user?id=123\&name=proxyman	https://proxyman.io/v1/user?id=123\&name=proxyman
POST http://localhost:3000/login	POST https://proxyman.io/login

7.2 Map Production (HTTPS) to localhost (HTTP)

Original URL	To URL
https://proxyman.io	http://localhost:3000
https://proxyman.io/v1/user?id=123\&name=proxyman	http://localhost:3000/v1/user?id=123\&name=proxyman
POST https://proxyman.io/login	POST http://localhost:3000/login

7.3 Map certain URL to another host

• Rule: https://proxyman.io/v1/user (for instance)
• Select Any and Wildcard
• Un-Check Include all subpaths of this URL: Un-check means it doesn't map other subpaths

Map To:

• Protocol: https
• Host: New Host (e.g. staging.proxyman.io)
• Port: 443 (your local port)
• Leave Path and Query Empty

Result:

Original URL	To URL
https://proxyman.io	https://proxyman.io (does not map the rule)
https://proxyman.io/v2/setting	https://proxyman.io/v2/setting (does not map the rule)
https://proxyman.io/v1/user?id=123\&name=proxyman	https://staging.proxyman.io/v1/user?id=123\&name=proxyman

7.4 Map Websocket from localhost to Production

Original URL	To URL
ws://localhost:4000	wss://ws.postman-echo.com
ws://localhost:4000/websocket	wss://ws.postman-echo.com/websocket

7.5 Map Websocket from Production to Localhost

Original URL	To URL
wss://ws.postman-echo.com	ws://localhost:3000
wss://ws.postman-echo.com/websocket	ws://localhost:3000/websocket

Learn more

• Switch API endpoint from Production to localhost environment for testing
